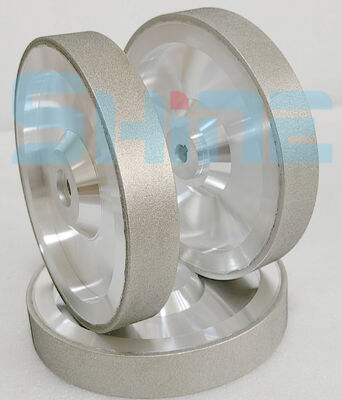

1A1 Electroplated Diamond Surface Grinding Wheel 200mm D126 for Alumina Zirconia Silicon Carbide Ceramic Processing

Product Overview

The 1A1 Electroplated Diamond Grinding Wheel 200mm D126 is a premium abrasive solution engineered for precision machining of hard brittle ceramic materials. Leveraging the exceptional hardness of synthetic diamond (Mohs 10), this grinding wheel maintains stable cutting performance across the most demanding industrial applications.

Key Advantages

Superior Diamond Hardness for Hard Brittle Ceramics

Diamond ranks at the highest level of the Mohs hardness scale among all natural and synthetic materials. This unmatched hardness enables our electroplated diamond grinding wheel to effectively process the full range of advanced technical ceramics:

Technical Specifications

• Wheel Shape: 1A1 (Flat peripheral grinding wheel)
• Diameter: 200mm
• Grit Size: D126 (medium-coarse grit for balanced material removal and surface finish)
• Bond Type: Electroplated nickel bond, single layer diamond deposition
• Arbor Hole: 32mm standard
• Max Operating Speed: 3500 RPM
• Abrasive Material: High-grade synthetic diamond

Applications

• Precision surface grinding of alumina ceramic substrates and components
• Cylindrical grinding of zirconia ceramic rods and tubes
• Profile grinding of silicon nitride bearing elements
• Edge chamfering and finishing of silicon carbide seals and wear parts
• Tool and die grinding for ceramic processing equipment

Quality Assurance

Every grinding wheel undergoes rigorous quality control including dimensional inspection, grit distribution analysis, and rotational balance testing. Manufactured under ISO 9001:2015 certified processes, our electroplated diamond wheels deliver consistent, reliable performance batch after batch.

Contact our technical sales team today to discuss your specific ceramic grinding requirements. We offer custom grit sizes, dimensions, and specifications to meet your exact application needs.
