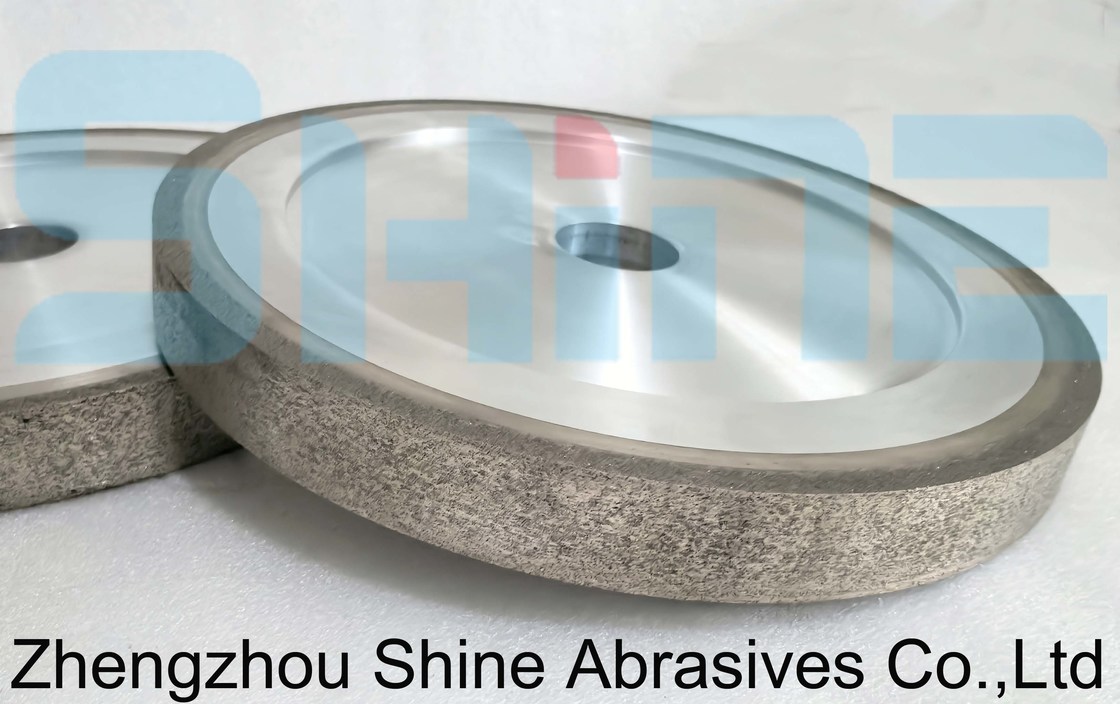

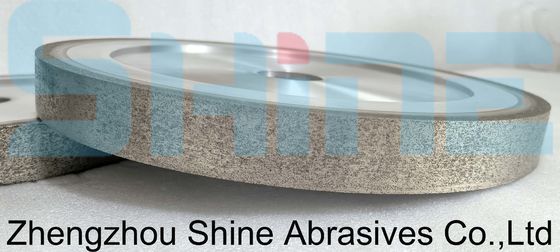

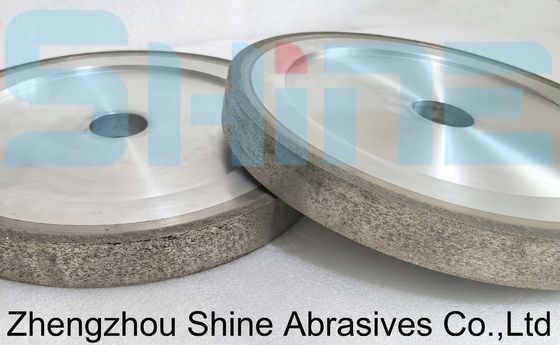

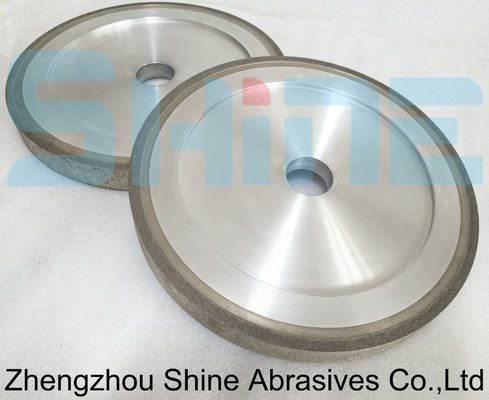

Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding

Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding

  • Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
  • Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
  • Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
  • Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
Produktdetails:
Herkunftsort: CHINA
Markenname: Shine Abrasives
Zertifizierung: ISO
Modellnummer: 4V2 1A1 14A2
Zahlung und Versand AGB:
Min Bestellmenge: 2 PCs
Preis: FOB
Verpackung Informationen: Einer in einer Papierbox.
Lieferzeit: 5 Arbeitstage
Zahlungsbedingungen: L/c, t/t
Versorgungsmaterial-Fähigkeit: 1000 PCS in einer Woche
Kontakt
Ausführliche Produkt-Beschreibung
Verbindungsmaterial: Metall Lochgröße: angepasst
Radfarbe: Silber, Grau, Schwarz Geeignete Materialien: Metall, Keramik, Glas und Stein
Besonderheit: Dauerhaft Anwendung: Schleifen und Polieren von harten und spröden Materialien
Maximale Last: angepasst Modell: HT-MW
Größe der Ränder: 15x10 mm Härte: Standard
Bindemittel: Metall Maschine: Manuelle Poliermaschine
Schleifmittel: 10*10mm, 15*10mm Lochdurchmesser: Standard
Merkmale: Hohe Effizienz, lange Lebensdauer, gutes Selbstharpenieren
Hervorheben:

metal bond diamond grinding wheel

,

sintered diamond tool for gem grinding

,

diamond grinding wheel for gemstones

Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding

Shine Abrasives Metal bond diamond wheels are essential tools for grinding glass and ceramics, offering numerous advantages such as high durability, excellent cutting performance, and the ability to achieve superior surface finishes.Their robust design and versatility make them invaluable in various applications, from manufacturing to precision finishing. Proper selection and maintenance will enhance their performance and longevity.







Type 1A1 Flat metal bond diamond grinding wheel
Concentration 50%,75%,125%,150%
Mesh

46#,60#,80#,100#,120#(coarse grinding);

120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification

D75-H10-T5-X10 D150-H19-X5-T5

D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
Application ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc



If your machine allows, adjust the wheel speed to the recommended setting for dressing. Typically, a lower speed is preferred to enhance control and reduce heat generation.

If applicable, apply coolant to the dressing area to minimize heat buildup and improve the dressing process.
Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding 0
